ResQ-U Rescue kit

Designed to rescue (raise and lower) users if suspended in a harness after a fall while working at heights, from confined spaces and lower situated positions.

ResQ-U Rescue kit
ResQ-U-Rescue-Kit-Rescue people
ResQ-U-Rescue-kit-is-a-descending-and-hoisting-system

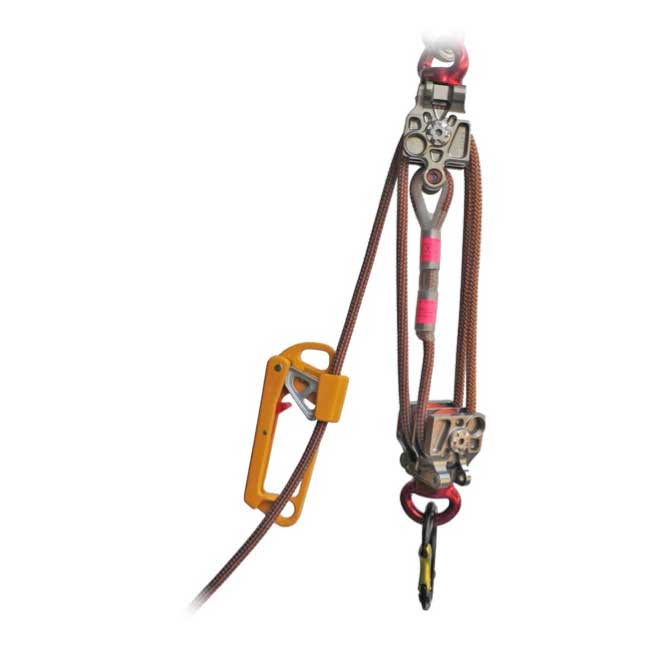

The ResQ-U Rescue kit is a descending and hoisting system that has been specially designed to quickly rescue (hoist or descend) victims after a fall in a harness and then evacuate them to a safe point.

Features ResQ-U rescue kit

  • Approved in accordance with European Standard EN 1891;
  • Suitable for fast rescue after a fall with a lifeline, line clamping system, fall arrest device;
  • Victim can descend or be lifted;
  • Can be attached to any suitable anchor point;
  • Transfer ratio 4: 1 (no resource needed);
  • Standard available in 50, 100, 150 and 200 meter kernmantle line;
  • Complete with HoPress eye and line clamp.

STAR-series

HONOR Safety & Consultancy introduces a comprehensive line of fall protection and rescue equipment under the name STAR series. These completely newly developed aircraft set a new standard in the field of personal safety, fall protection and rescue and evacuation. The name SRL is an abbreviation of ‘self retracting lifeline’. An automatic device whose lifeline rolls in and out. The device offers freedom of movement and also certainty that in the event of a fall, the device intervenes and arrests the fall.

Technical specifications



ResQ-U Rescue Kit

  • Minimum Breaking Strength = 50kN. See RPM
  • System user instructions
  • Working Load Limit = 10kN. See RPM System user instructions
  • Compact system – only 32cm from end to end when compressed
  • Minimum Breaking Strength of 9.5 mm rope = 24kN
  • Gear Ratio 4:1 (no power source required)
  • Complete with Ascender, yellow
  • Available in four lengths: 50 – 100 – 150 – 200 m
  • Sheath core (Kernmantel) rope
  • Kernmantel rope:
    – 9.5 mm – EN 1891 Type A
    – HoPress® Eyelet
  • Lightweight Design Shackles with minimal ‘sit back’ between lifts and the ability to control both lifts and lowerings
  • Top and bottom pulley with Swivel Function



Certification

European standards: Machine Directory: MD2006/42/EC
Rope: EN 1891 Type A
HONOR General Manufacturing Requirements (ISO-9001)



Art.no: R016.004.001 (ResQ-U Rescue Kit, 50m )
Art.no: R016.004.002 (ResQ-U Rescue Kit, 100m)
Art.no: R016.004.003 (ResQ-U Rescue Kit, 150m )
Art.no: R016.004.004 (ResQ-U Rescue Kit, 200m)
